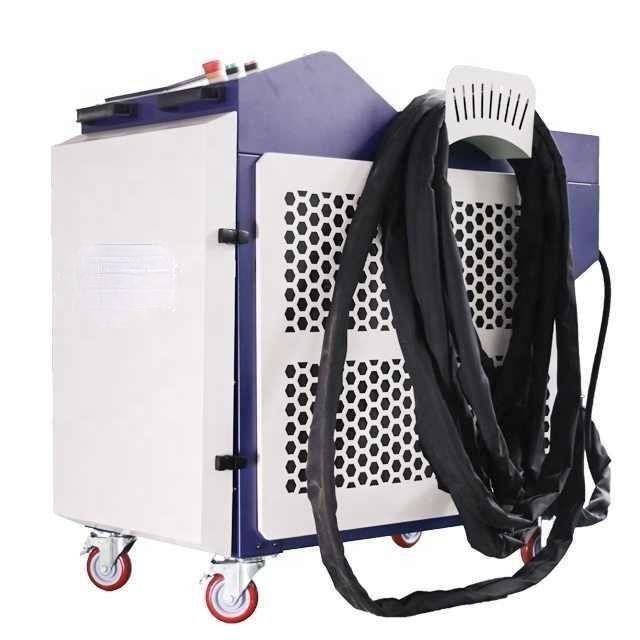

220V 50Hz Portable Laser Rust Removal Machine For Car Cleaner Part Automotive Repair

220V 50Hz Portable Laser Rust Removal Machine For Car Cleaner Part Automotive Repair

220V 50Hz Portable Laser Rust Removal Machine For Car Cleaner Part Automotive Repair
220V 50Hz Portable Laser Rust Removal Machine For Car Cleaner Part Automotive Repair
220V 50Hz Portable Laser Rust Removal Machine For Car Cleaner Part Automotive Repair
Product Details:
Place of Origin: P.R.CHINA
Brand Name: OTA
Certification: CE, ISO
Model Number: OTQX-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD2350-USD5980
Packaging Details: WOODEN CASE
Delivery Time: 10-15DAYS
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 2000SETS/MONTH
Contact Now
Detailed Product Description
Product Name: Portable Laser Rust Removal Machine Cleaning Depth: 0-1mm
Cleaning Efficiency: ≥99.9% Control System: PLC
Cooling System: Air Cooling Laser Pulse Frequency: 1-20KHz
Laser Wavelength: 10.6um Power Supply: 220V/50Hz
Scanning Angle: 0-360° Scanning Speed: 1-1000mm/s
Spot Size: 0.1-3mm
Highlight:

220V Portable Laser Rust Removal Machine

,

50Hz Portable Laser Rust Removal Machine

Handheld Fiber Laser Cleaning Machine For Car Cleaner Part Automotive Repair

Product descriptions:

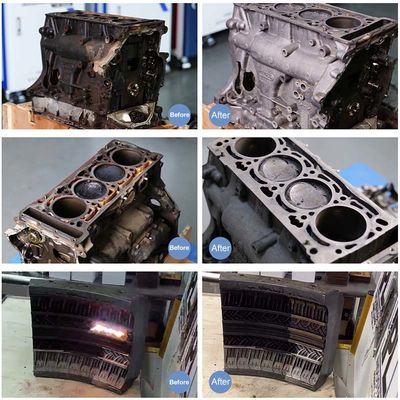

The laser galvanometer of the laser cleaning machine adopts an imported high-speed motor, which has the characteristics of small size, fast speed, high precision, and good stability. Its comprehensive indicators have reached the leading level; the cleaning surface has high cleanliness and can clean the surface of metal objects of various shapes. resin, oil stains, stains, dirt, rust spots, coatings, plating, paint, as well as stone carving surface attachments and rubber mold residues, etc.


220V 50Hz Portable Laser Rust Removal Machine For Car Cleaner Part Automotive Repair 0

220V 50Hz Portable Laser Rust Removal Machine For Car Cleaner Part Automotive Repair 1


220V 50Hz Portable Laser Rust Removal Machine For Car Cleaner Part Automotive Repair 2




220V 50Hz Portable Laser Rust Removal Machine For Car Cleaner Part Automotive Repair 3


220V 50Hz Portable Laser Rust Removal Machine For Car Cleaner Part Automotive Repair 4

220V 50Hz Portable Laser Rust Removal Machine For Car Cleaner Part Automotive Repair 5

Product Specification
Mode OTQX-1000 OTQX-1500 OTQX-2000 OTQX-3000
Laser source power 1000w 1500w 2000w 3000w
Laser wavelength 1080±10mm
Laser type Continuous/Modulation
Maximum Modulation Frequency 20khz
Cable length 10m(15m can be customized)20m(Standard for BLC3000
Scan Width 10-160mm
Power configuration AC 220V±10% AC 380V±7%
  6KW 8KW 10KW 13KW
Cooling method Water cooling (Medium:Deionized water,distilled water or purified water )
Machine Dimension 845*460*605mm 905*480*630mm 1240*584*1148m
m
Packing Dimension 1120*565*1050mm 1430*720*1220m
m
Net weight 106kg 113kg 137kg 235kg
Gross Weight 138kg 145kg 169kg 280kg
Water tank
Capacity
16L(14-15L of water to be added



It have the special features below:

1) Fast rust cleaning.
2) Non-contact precise cleaning, with accurate location, precise size and selective cleaning.
3) No chemical cleaning fluid, no consumables, safe and environmental protection.
4) Simple operation, the power can be charged, and the automatic cleaning can be realized by hand or with the manipulator.
