Place of Origin: | P.R.CHINA |
Brand Name: | OTA |
Certification: | CE, ISO |
Model Number: | OTQX-1000 |
Minimum Order Quantity: | 1SET |
---|---|
Price: | USD2350-USD5980 |
Packaging Details: | WOODEN CASE |
Delivery Time: | 10-15DAYS |
Payment Terms: | L/C, D/P, T/T, Western Union |
Supply Ability: | 2000SETS/MONTH |
Product Name: | Fiber Laser Cleaning Machine | Cleaning Depth: | 0-1mm |
---|---|---|---|
Cleaning Efficiency: | ≥99.9% | Control System: | PLC |
Cooling System: | Air Cooling | Laser Pulse Frequency: | 1-20KHz |
Laser Wavelength: | 10.6um | Power Supply: | 220V/50Hz |
Scanning Angle: | 0-360° | Scanning Speed: | 1-1000mm/s |
Spot Size: | 0.1-3mm | ||
Highlight: | Portable Fiber Laser Cleaning Machine,Laser Cleaning Machine 2000W,1500w laser cleaning machine |

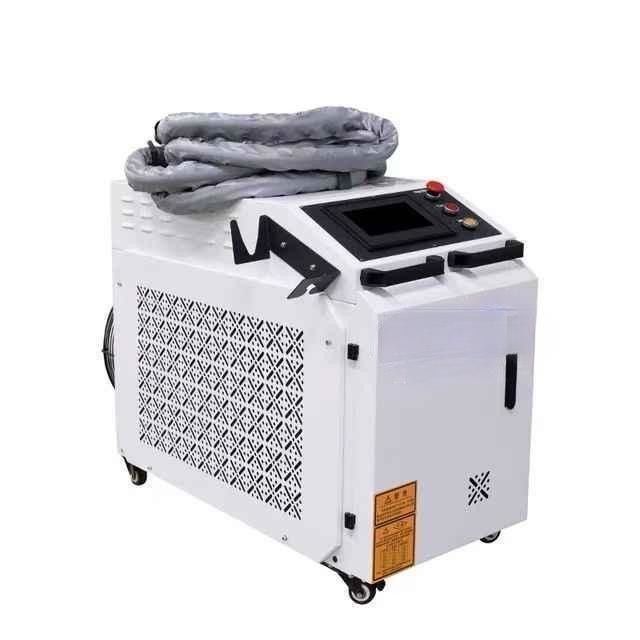

Fiber Laser Cleaning Machine For Rust Paint Coating Paint Oil Dust Removing
Product descriptions:
Laser cleaning machine also called laser rust removal cleaning machine, laser cleaner, mainly use to remove metal rust, painting, oil from metal surface. This laser cleaner is with continuous laser beam, so can clean rust fast.
The shape of the laser beam of the laser cleaning machine is controllable, which does not damage the surface of cultural relics and can effectively clean various product workpieces, including cleaning rusty workpieces, removing paint on the surface of equipment, changing the dullness of oxidation on the surface of objects, etc.
It's widely used for following industries:
1. Rust removal from metal surfaces
2. Surface paint removal and paint removal treatment
3. Clean surface oil, stains and dirt
4. Surface plating and coating are clear
5. Pretreatment of welding surface and spraying surface
6. Remove dust and attachments on the surface of stone statues
7. Cleaning of rubber mold residues
8. Antiques and cultural relics cleaning
Product Specification | ||||
Mode | OTQX-1000 | OTQX-1500 | OTQX-2000 | OTQX-3000 |
Laser source power | 1000w | 1500w | 2000w | 3000w |
Laser wavelength | 1080±10mm | |||
Laser type | Continuous/Modulation | |||
Maximum Modulation Frequency | 20khz | |||
Cable length | 10m(15m can be customized)20m(Standard for BLC3000 | |||
Scan Width | 10-160mm | |||
Power configuration | AC 220V±10% | AC 380V±7% | ||
6KW | 8KW | 10KW | 13KW | |
Cooling method | Water cooling (Medium:Deionized water,distilled water or purified water ) | |||
Machine Dimension | 845*460*605mm | 905*480*630mm | 1240*584*1148m m |
|
Packing Dimension | 1120*565*1050mm | 1430*720*1220m m |
||
Net weight | 106kg | 113kg | 137kg | 235kg |
Gross Weight | 138kg | 145kg | 169kg | 280kg |
Water tank Capacity |
16L(14-15L of water to be added |
Features
1) Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves,thermal stress, etc., causing surface materials to sublimate and evaporate.
2) The focused laser beam is capable of accurately evaporating surface objects or dirt.
3) Fiber Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.
4) By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.
