Place of Origin: | P.R.CHINA |
Brand Name: | OTA |
Certification: | CE, ISO |
Model Number: | OTQX-1000 |
Minimum Order Quantity: | 1SET |
---|---|
Price: | USD2350-USD5980 |
Packaging Details: | WOODEN CASE |
Delivery Time: | 10-15DAYS |
Payment Terms: | L/C, D/P, T/T, Western Union |
Supply Ability: | 2000SETS/MONTH |
Product Name: | 3000W Laser Cleaner Paint Removal | Cleaning Depth: | 0-1mm |
---|---|---|---|
Cleaning Efficiency: | ≥99.9% | Control System: | PLC |
Cooling System: | Air Cooling | Laser Pulse Frequency: | 1-20KHz |
Laser Wavelength: | 10.6um | Power Supply: | 220V/50Hz |
Scanning Angle: | 0-360° | Scanning Speed: | 1-1000mm/s |
Spot Size: | 0.1-3mm | ||
Highlight: | 3000W Laser Cleaner Paint Removal,2000W LLaser Cleaner Paint Removal |

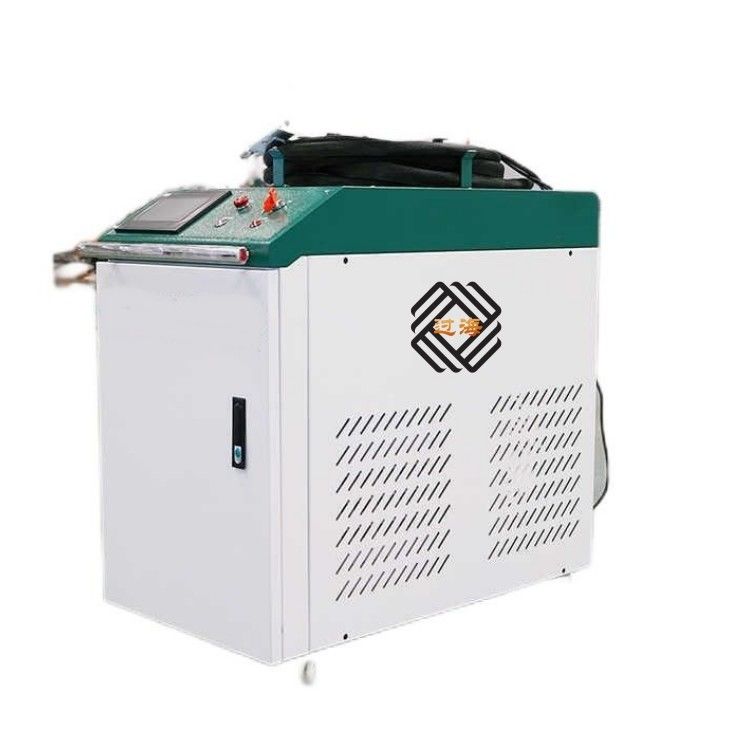

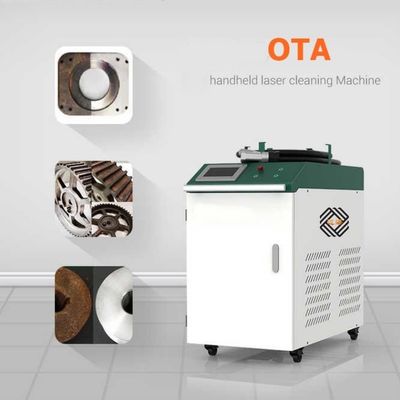

1000W 1500W 2000W 3000W Rust Cleaner Paint Removal Laser Cleaning Machine
Product descriptions:
This is a fiber laser rust cleaning machine, can fast remove rust from metal surface. Standard with Raycus 1000w laser generator, optional 1500w 2000w 3000w. It can widely use in outdoor metal rust cleaning, like ship deck rust remove and repair, fence painting remove and clean, after cleaning user can add painting to protect the surface.
Product Specification | ||||
Mode | OTQX-1000 | OTQX-1500 | OTQX-2000 | OTQX-3000 |
Laser source power | 1000w | 1500w | 2000w | 3000w |
Laser wavelength | 1080±10mm | |||
Laser type | Continuous/Modulation | |||
Maximum Modulation Frequency | 20khz | |||
Cable length | 10m(15m can be customized)20m(Standard for BLC3000 | |||
Scan Width | 10-160mm | |||
Power configuration | AC 220V±10% | AC 380V±7% | ||
6KW | 8KW | 10KW | 13KW | |
Cooling method | Water cooling (Medium:Deionized water,distilled water or purified water ) | |||
Machine Dimension | 845*460*605mm | 905*480*630mm | 1240*584*1148m m |
|
Packing Dimension | 1120*565*1050mm | 1430*720*1220m m |
||
Net weight | 106kg | 113kg | 137kg | 235kg |
Gross Weight | 138kg | 145kg | 169kg | 280kg |
Water tank Capacity |
16L(14-15L of water to be added |
The traditional industrial cleaning mode mostly uses chemical agents and mechanical methods for cleaning. With the increasing awareness of environmental protection and safety, the types of chemicals that can be used in industrial production cleaning will become less and less. Cleaner and non-destructive cleaning method is a problem we have to consider: continuous fiber laser cleaning machine has the characteristics of no grinding, no contact, no thermal effect and suitable for various materials, which is considered to be the most reliable and effective solution. At the same time, laser cleaning can solve the problems that can not be solved by traditional cleaning methods.
