Scrap Wood Shredder Machine Dual Shaft Waste Foam Shredding Machine

Scrap Wood Shredder Machine Dual Shaft Waste Foam Shredding Machine

  • Scrap Wood Shredder Machine Dual Shaft Waste Foam Shredding Machine
  • Scrap Wood Shredder Machine Dual Shaft Waste Foam Shredding Machine
Scrap Wood Shredder Machine Dual Shaft Waste Foam Shredding Machine
Product Details:
Place of Origin: P.R.CHINA
Brand Name: OTA
Certification: CE, ISO
Model Number: OPS-500SD
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD1350-USD2980
Packaging Details: WOODEN CASE
Delivery Time: 10-15DAYS
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000SETS/MONTH
Contact Now
Detailed Product Description
Application: Plastic Shredding Blade: SKD-II Or As Customer Requirement
Voltage: 380V Warranty: 1 Year
Bearing Brand: NSK Or SKF Or Wafandian Blades Material: SKD11 Or DC53
Hs Code: 8477.8000 Name: Plastic Shredder Machine
Highlight:

Scrap Wood Shredder Machine

,

Waste Foam Shredder Machine

,

Dual Shaft Waste Foam Shredding Machine

Recycling Lump Metal Wood Scrap Foam Box Bottle Plastic Machine Shredder

Product description:

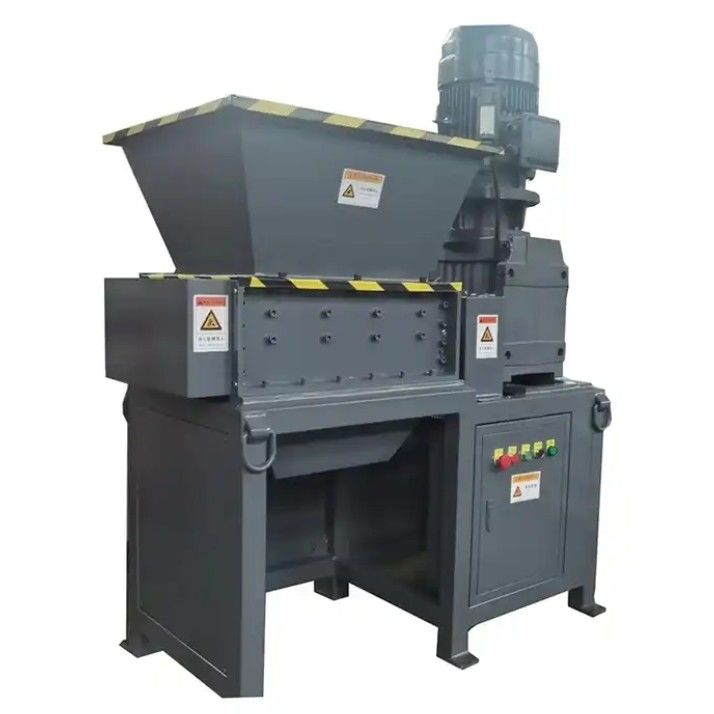

The two-shaft shredder is a kind of mechanical equipment specially used to deal with all kinds of waste materials. Its working principle is to use the rotating force of the two spindles to tear and break the material. When the material enters the two-axis shredder, the blades on the two spindles rotate in opposite directions, trapping the material in the middle and tearing it. As the spindle rotates, the material is gradually broken into smaller particles.


The dual-shaft shredder has the characteristics of high efficiency, stability and reliability, and can handle various types of waste, such as waste plastics, scrap metal, waste paper and so on. Its working principle is simple to understand, easy to operate, can greatly improve the efficiency of waste disposal. At the same time, the double-shaft shredder also has the characteristics of energy saving and environmental protection, which can reduce the accumulation and pollution of waste and contribute to environmental protection.
Scrap Wood Shredder Machine Dual Shaft Waste Foam Shredding Machine 0

Scrap Wood Shredder Machine Dual Shaft Waste Foam Shredding Machine 1

Scrap Wood Shredder Machine Dual Shaft Waste Foam Shredding Machine 2



Scrap Wood Shredder Machine Dual Shaft Waste Foam Shredding Machine 3

Scrap Wood Shredder Machine Dual Shaft Waste Foam Shredding Machine 4

Parameters Model OPS-500SD
Motor 7.5KW*2
Gearbox JL4#-15*2
Input rotation 15rpm
Input torque 9148Nm
Shaft Φ70
Blade Φ200*20,9CrSi
Blade nos 24pcs
Inlet size 700*550*350mm
Outlet width 580mm
Outlet height to floor 200mm
Overall size 1840*650*1450mm
G.W ≈1000kg
Capacity: 150-200KG
Applications Light metals, plastics, kitchen wastes, wood, paper, etc.



Usages:

Dual-shaft shredder uses: It can generally be used to shred solid materials such as plastic, rubber, fiber, paper, wood, electrical devices, cables, etc. that are difficult to break, such as: nozzle materials, rubber heads, PET bottles, cardboard, circuit boards , wood, plastic barrels, etc.



As long as the materials are difficult to crush, the products coming out of the shredder will be in the form of 20x40mm granules. When using the shredder, the knife speed is low, ensuring safety and no harm, low noise, low energy consumption and strong practicality.



The materials suitable for crushing by this machine are as follows:
1. Various hollow containers: plastic beverage cans, plastic barrels, iron barrels, packaging boxes, packaging barrels



2. Waste household appliances: televisions,
Washing machine, refrigerator shell



3. Pipes: large pipes, pipe fittings, PE pipes



4. Waste templates: wooden pallets, plastic pallets, Forklift pallet



5. Scrap tires: car tires, truck tires



6. Scrap metal: car casings, aluminum alloys, scrap aluminum castings, engine casings, lead and steel plates with a thickness of less than 5mm.
