| Place of Origin: | P.R.CHINA |
| Brand Name: | OTA |
| Certification: | CE, ISO |
| Model Number: | OPS-500SD |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | USD1350-USD2980 |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 10-15DAYS |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000SETS/MONTH |
| Name: | Textile Shredder Machine | Application: | Plastic Shredding |
|---|---|---|---|
| Blade: | SKD-II Or As Customer Requirement | Voltage: | 380V |
| Warranty: | 1 Year | Bearing Brand: | NSK Or SKF Or Wafandian |
| Blades Material: | SKD11 Or DC53 | Hs Code: | 8477.8000 |
| Highlight: | Waste Textile Shredder Machine,Small Textile Shredding Machine,Waste Cardboard Shredding Machine |
||

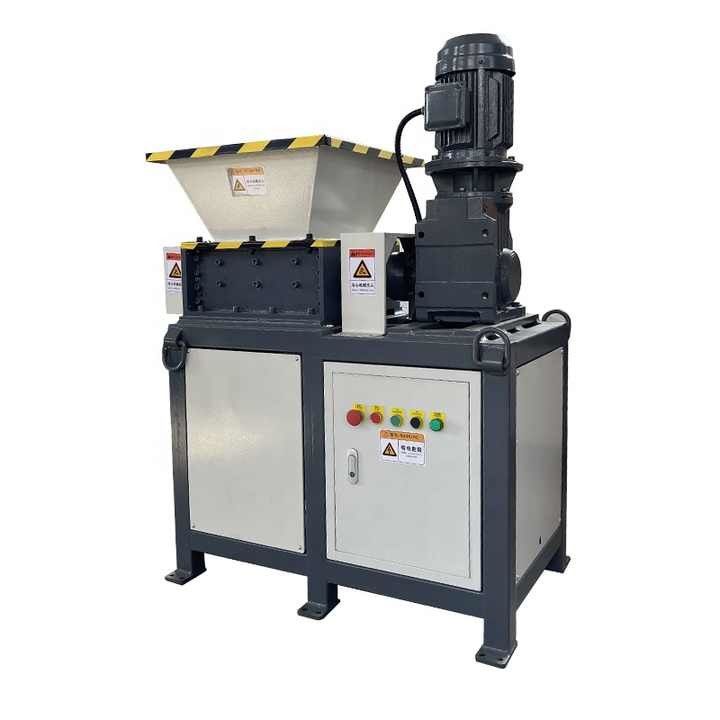

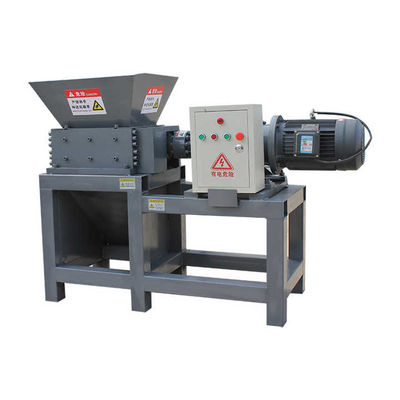

Small Metal Waste Textile Shredder Machine Waste Cardboard Shredding Machine
Features:
Power surging,Strong power comes from a good motor,Durable,Worry-free quality, long-lasting operationMute and low noise,Tai Chi turbine impeller rotates,Can effectively reduce noise.
The working principle of the two-axis shredder is mainly to break and tear the material through the rotation and shearing of the two spindles. When the material enters the two-axis shredder, the two main axes rotate at different speeds, forming a rotating force and shear force, so that the material is squeezed, shear and friction between the two main axes, and is broken into small pieces.
Specifically, the spindle of the two-axis shredder is usually made of high-strength materials, such as high-manganese steel, alloy steel, etc., with high hardness and wear resistance. When the spindle rotates, the friction between the material and the spindle causes the material to be torn, and the clearance between the spindle causes the material to be squeezed. At the same time, the speed difference between the two spindles also causes the material to be shear.
In addition, the double-shaft shredder is also equipped with auxiliary devices such as blades and screens to further break and screen materials. The blade can increase the friction between the material and the spindle and improve the crushing effect; The screen can control the discharge particle size of the material to meet different needs.
| Parameters | Model OPS-500SD |
| Motor | 7.5KW*2 |
| Gearbox | JL4#-15*2 |
| Input rotation | 15rpm |
| Input torque | 9148Nm |
| Shaft | Φ70 |
| Blade | Φ200*20,9CrSi |
| Blade nos | 24pcs |
| Inlet size | 700*550*350mm |
| Outlet width | 580mm |
| Outlet height to floor | 200mm |
| Overall size | 1840*650*1450mm |
| G.W | ≈1000kg |
| Capacity: | 150-200KG |
| Applications | Light metals, plastics, kitchen wastes, wood, paper, etc. |
