| Place of Origin: | P.R.CHINA |
| Brand Name: | OTA |
| Certification: | CE, ISO |
| Model Number: | OPS-500 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | USD1350-USD2980 |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 10-15DAYS |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000SETS/MONTH |
| Application: | Plastic Shredding | Blade: | High-quality Alloy Steel |
|---|---|---|---|
| Name: | Recycling Crusher Machine | Capacity: | 1000kg/h |
| Cutting Type: | Cross-Cutting | Dimension: | 1700x1200x1700mm |
| Material: | Carbon Steel | Noise Level: | ≤80dB |
| Power: | 2.2kw | Rotating Speed: | 500rpm |
| Size: | Large | Voltage: | 380V |
| Warranty: | 1 Year | Weight: | 1000kg |
| Highlight: | 1000kg/h Recycling Crusher Machine,Recycling Crusher Machine Double Shaft,Double Shaft Mobile Scrap Shredder |
||

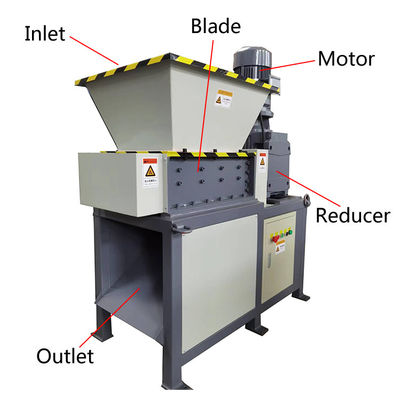

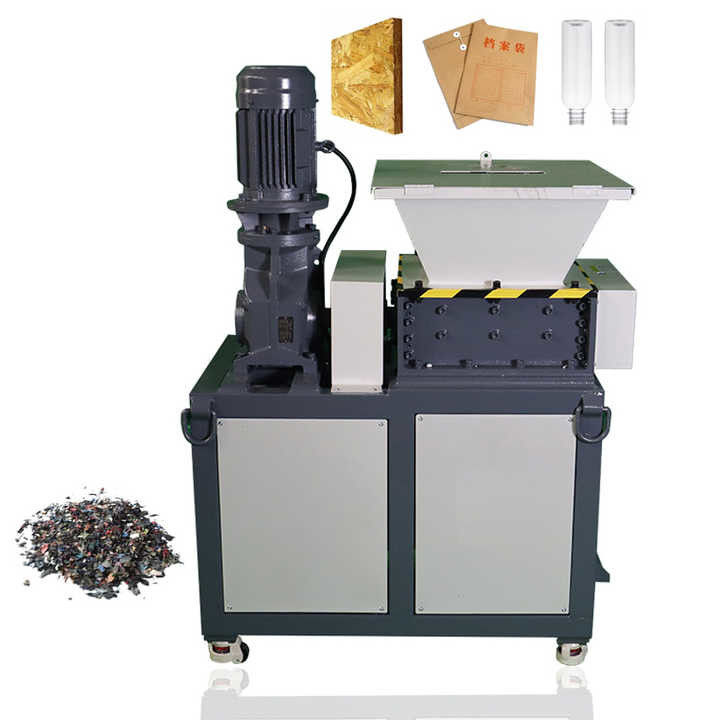

High Speed Recycling Crusher Double Shaft Waste Pvc Plastic Bottle Scrap Mobile Shredder Machine
Product description:
Scrap Mobile Shredder Machine is a kind of efficient and environmental-friendly equipment for waste recycling. It is mainly used for crushing waste plastic bottles, waste metal cans, waste paper, wood, etc., and has a high cost performance.
It has the characteristics of simple structure, easy operation, low noise and low vibration. It can adjust the size of the output according to the different materials to be crushed, and can also adjust the feeding speed automatically according to the feeding volume.
It is mainly used in garbage recycling, resource utilization and environmental protection. It can greatly increase the handling volume of waste materials and improve the utilization rate of resources. It is an important equipment for waste recycling and resource utilization.
| Parameters | Model OPS-500 |
| Motor | 7.5KW |
| Gearbox | JL4#-15 |
| Input rotation | 15rpm |
| Input torque | 4574Nm |
| Shaft | Φ70 |
| Blade | Φ200*20,9CrSi |
| Blade nos | 24pcs |
| Inlet size | 700*700*350mm |
| Outlet width | 490mm |
| Outlet height to floor | 200mm |
| Overall size | 1350*700*1600 |
| G.W | ≈750kg |
| Capacity: | 130-160kg |
| Applications | Light metals, plastics, kitchen wastes, wood, paper, etc. |
Features:
1. The blade holder and blade on the rotor can be disassembled for easy cleaning and maintenance.
2. Each moving knife has 4 cutting edges, which can be rotated 90° after wear to continue to use.
3. The main shaft is driven by the gear reduction box, running smoothly, low noise, large torque.
4. Adopt PLC program control system, can automatically reverse, make the machine run stably.
5. The box body is welded and tempered after welding to eliminate the welding stress.
6. The installation position of moving knife is precisely machined by machining center to ensure that the clearance between each moving knife and fixed knife is the same.
7. The moving tool holder is embedded in the tool shaft with high strength screws, and can prevent welding type after long-term vibration caused by the phenomenon of knife drop.
8. Convenient transportation after tearing, can reduce transportation cost, increase transportation efficiency, convenient secondary processing.
