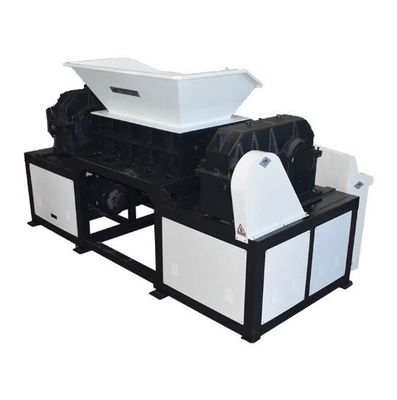

Big Tree Root Crusher Wood Recycling Equipment Double Shaft Stump Shredder

Big Tree Root Crusher Wood Recycling Equipment Double Shaft Stump Shredder

Big Tree Root Crusher Wood Recycling Equipment Double Shaft Stump Shredder
Big Tree Root Crusher Wood Recycling Equipment Double Shaft Stump Shredder
Big Tree Root Crusher Wood Recycling Equipment Double Shaft Stump Shredder
Product Details:
Place of Origin: P.R.CHINA
Brand Name: OTA
Certification: CE, ISO
Model Number: OPS-500D
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD1350-USD35000
Packaging Details: WOODEN CASE
Delivery Time: 10-15DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000SETS/MONTH
Contact Now
Detailed Product Description
Name: Heavy Duty Wood Shredder Blade Quantity: 2
Blade Thickness: 20mm Cutting Capacity: 200mm
Cutting Speed: 20m/min Feeding Size: 200mm
Material: Wood Power: 7.5kW
Voltage: 380V Weight: 1200kg
Blade Material: SKD-11
Highlight:

Big Tree Root Crusher

,

ISO Wood Recycling Equipment

,

Double Shaft Stump Shredder

Big Tree Root Crusher Wood Recycling Equipment Stump Shredding Machine

Product description:

Stump crushers are widely used in wood recycling, landscaping, sawdust production, wood material processing and other fields. The crushed wood particles can be used as new environmentally friendly materials, which can be used in landscaping, building materials, biomass energy and other fields, realizing the recycling of resources.



The Environmental Protection Double Shaft Shredder is designed to meet the requirements of modern waste management and recycling practices. Some of its key features include:

- Dual shaft design: The double shaft configuration allows for simultaneous shredding of wood materials from two different directions, resulting in faster processing and higher output.

- Environmental protection: The machine is equipped with advanced dust and noise reduction systems, ensuring minimal environmental impact during operation.

- High-quality materials: The shredder is made of high-quality steel materials, ensuring durability and longevity even under continuous use.

- Easy maintenance: The design of the Environmental Protection Double Shaft Shredder allows for easy access to its components, facilitating quick maintenance and reducing downtime.

- Safety features: The machine is equipped with safety guards and switches to prevent accidents and ensure operator safety.


Big Tree Root Crusher Wood Recycling Equipment Double Shaft Stump Shredder 0

Big Tree Root Crusher Wood Recycling Equipment Double Shaft Stump Shredder 1
Big Tree Root Crusher Wood Recycling Equipment Double Shaft Stump Shredder 2

Parameters Model OPS-500SD
Motor 7.5KW*2
Gearbox JL4#-15*2
Input rotation 15rpm
Input torque 9148Nm
Shaft Φ70
Blade Φ200*20,9CrSi
Blade nos 24pcs
Inlet size 700*550*350mm
Outlet width 580mm
Outlet height to floor 200mm
Overall size 1840*650*1450mm
G.W ≈1000kg
Capacity: 150-200KG
Applications Light metals, plastics, kitchen wastes, wood, paper, etc.



Applications of Environmental Protection Double Shaft Shredder:



The Environmental Protection Double Shaft Shredder is ideal for a wide range of applications, including:

- Waste wood processing: The machine is suitable for shredding various types of waste wood, such as pallets, boards, and furniture.

- Recycling industries: The shredded wood materials can be further processed into recycled wood chips, suitable for use in furniture production, flooring, and other industries.

- Biomass energy production: The shredded wood can be used as raw material for biomass energy plants, such as wood pellet production and biomass fuel production.

- Soil improvement: Wood shredders can be used to create wood compost, which can be used as soil improver for agricultural and horticultural purposes.

Big Tree Root Crusher Wood Recycling Equipment Double Shaft Stump Shredder 3



Big Tree Root Crusher Wood Recycling Equipment Double Shaft Stump Shredder 4
Big Tree Root Crusher Wood Recycling Equipment Double Shaft Stump Shredder 5

Service:

SERVICE
Before order:
Answering Customers' Questions: According to our customer's question by email or telephone, we will provide a patient customer' service.
After order:
Delivery Time: After signing the contract and receiving the deposit, the production will take 15~20 working days.
Order Tracking: After the deposit received, there will be a professional team tracking the order from production to package and shipment.
After-sale Service:
Warranty Period: We provide 12 month warranty for main body. Within 12 month, there is any quality problem with the main body(not including the wearing parts), we will arrange our professional engineers to provide requirement service.
Installation Service:
If customers don't need our engineers for installation, we will provide Remote Advisory Services. Also we could arrange engineers to provide installation service if customer need.
