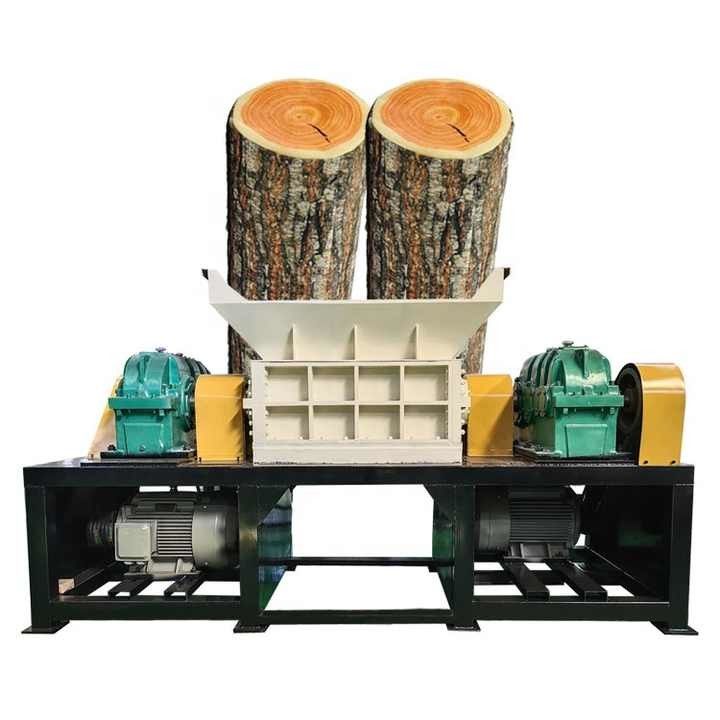

380V Heavy Duty Wood Shredder Machine Twin Shaft Wooden Pallet Shredder

380V Heavy Duty Wood Shredder Machine Twin Shaft Wooden Pallet Shredder

380V Heavy Duty Wood Shredder Machine Twin Shaft Wooden Pallet Shredder
380V Heavy Duty Wood Shredder Machine Twin Shaft Wooden Pallet Shredder
380V Heavy Duty Wood Shredder Machine Twin Shaft Wooden Pallet Shredder
Product Details:
Place of Origin: P.R.CHINA
Brand Name: OTA
Certification: CE, ISO
Model Number: OPS-500D
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD1350-USD35000
Packaging Details: WOODEN CASE
Delivery Time: 10-15DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000SETS/MONTH
Contact Now
Detailed Product Description
Name: Heavy Duty Wood Shredder Blade Quantity: 2
Cutting Capacity: 200mm Cutting Speed: 20m/min
Feeding Size: 200mm Material: Wood
Power: 7.5kW Blade Thickness: 20mm
Voltage: 380V Weight: 1200kg
Highlight:

380V Heavy Duty Wood Shredder

,

Heavy Duty Wood Shredder Machine

,

Twin Shaft Wooden Pallet Shredder

Wood Root Shredder Wooden Pallet Nail Sawdust Twin-Shaft Shredding Machine

Product description:

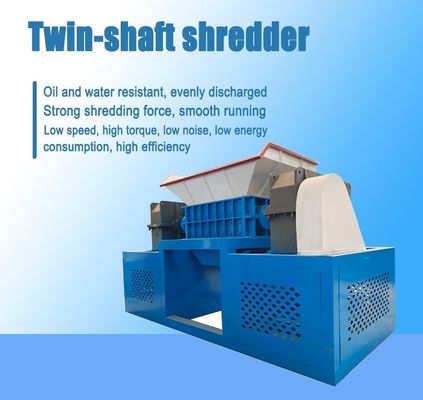

Dual shaft shredder is a kind of coarse crushing machine, used to process raw materials or leftover materials, which can make the size smaller. Compared with other crushers, the cutter shaft has low speed, low noise and low energy consumption.

The shredder consists of a motor, a weighted reducer, a thickened cutter shaft, a 55sicr cutter, a rack, a box, and other main structures.

This machine has a wide range of applications, suitable for various raw materials such as waste steel, plastic, wood, rubber, electronic appliances, industrial waste, glass products, etc.

380V Heavy Duty Wood Shredder Machine Twin Shaft Wooden Pallet Shredder 0
380V Heavy Duty Wood Shredder Machine Twin Shaft Wooden Pallet Shredder 1

380V Heavy Duty Wood Shredder Machine Twin Shaft Wooden Pallet Shredder 2
380V Heavy Duty Wood Shredder Machine Twin Shaft Wooden Pallet Shredder 3

Parameters Model OPS-500SD
Motor 7.5KW*2
Gearbox JL4#-15*2
Input rotation 15rpm
Input torque 9148Nm
Shaft Φ70
Blade Φ200*20,9CrSi
Blade nos 24pcs
Inlet size 700*550*350mm
Outlet width 580mm
Outlet height to floor 200mm
Overall size 1840*650*1450mm
G.W ≈1000kg
Capacity: 150-200KG
Applications Light metals, plastics, kitchen wastes, wood, paper, etc.


380V Heavy Duty Wood Shredder Machine Twin Shaft Wooden Pallet Shredder 4
Application of Wood pallet nail shredder/wood shredding machine
Suitable material:
Computer circuit boards, aluminum scrap, steel scrap, cans, PCV pipe, lumps and etc.
1. A variety of hollow containers: Plastic beverage cans, plastic buckets, iron cans,packing boxes.
2. Waste household appliances: TV, washing machine, refrigerator shell
3. Pipe: Large pipes, pipe fittings, PE pipe
4. Waste template: wooden pallets, plastic pallets,truck pallet
5. waste tires: car tires, truck tires
6. scrap metal: car shell,Aluminum die casting scraps, engine shell, gear boxes ,lead as well as the steel plate with less than 5mm thickness.
7.The food waste, garbage, animal carcasses, RDF derivatives, medical waste, biological straw, garden garbage.


380V Heavy Duty Wood Shredder Machine Twin Shaft Wooden Pallet Shredder 5

Service:

SERVICE
Before order:
Answering Customers' Questions: According to our customer's question by email or telephone, we will provide a patient customer' service.
After order:
Delivery Time: After signing the contract and receiving the deposit, the production will take 15~20 working days.
Order Tracking: After the deposit received, there will be a professional team tracking the order from production to package and shipment.
After-sale Service:
Warranty Period: We provide 12 month warranty for main body. Within 12 month, there is any quality problem with the main body(not including the wearing parts), we will arrange our professional engineers to provide requirement service.
Installation Service:
If customers don't need our engineers for installation, we will provide Remote Advisory Services. Also we could arrange engineers to provide installation service if customer need.
