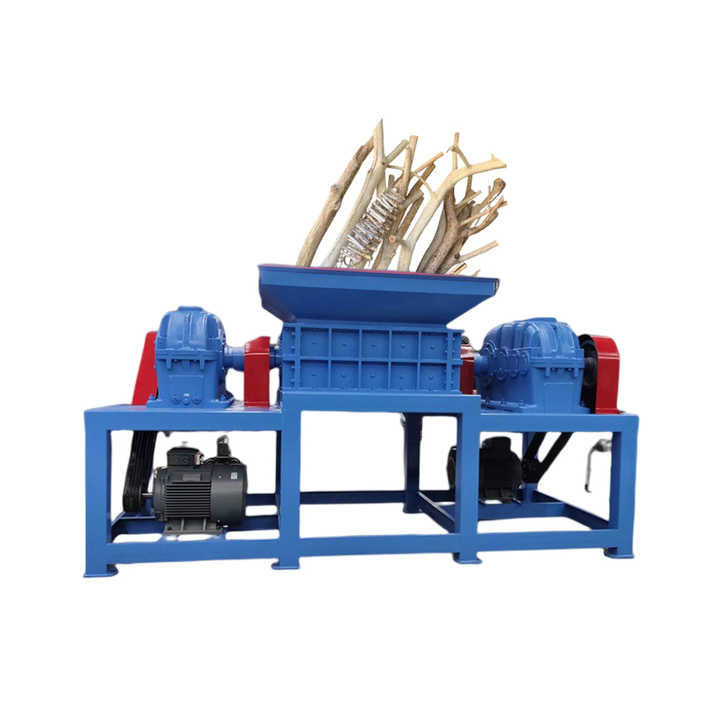

Multi Functional Heavy Duty Wood Shredder Twin Shaft for Bark Tree Leaf Stump

Multi Functional Heavy Duty Wood Shredder Twin Shaft for Bark Tree Leaf Stump

Multi Functional Heavy Duty Wood Shredder Twin Shaft for Bark Tree Leaf Stump
Multi Functional Heavy Duty Wood Shredder Twin Shaft for Bark Tree Leaf Stump
Multi Functional Heavy Duty Wood Shredder Twin Shaft for Bark Tree Leaf Stump
Product Details:
Place of Origin: P.R.CHINA
Brand Name: OTA
Certification: CE, ISO
Model Number: OPS-500D
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD1350-USD35000
Packaging Details: WOODEN CASE
Delivery Time: 10-15DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000SETS/MONTH
Contact Now
Detailed Product Description
Blade Material: SKD-11 Blade Quantity: 2
Name: Heavy Duty Wood Shredder Blade Thickness: 20mm
Cutting Capacity: 200mm Cutting Speed: 20m/min
Dimension: 1800x1200x1400mm Feeding Size: 200mm
Material: Wood Noise Level: ≤85dB
Power: 7.5kW Rotating Speed: 500rpm
Rotor Diameter: 400mm Voltage: 380V
Weight: 1200kg
Highlight:

Multi Functional Heavy Duty Wood Shredder

,

Heavy Duty Wood Shredder Twin Shaft

,

Heavy Duty Tree Shredder Machine

Multi-Functional Automatic Bark Tree Leaf Stump Twin Shaft Shredder



Product description:



Double shaft shredder also called cutting shredder through cutting and extrusion to reduce the material size,widely used in the waste plastic,scrape rubber,scrap metal,wood,garbage and other large volume of waste.our company provide shredding machine equipment with mature technology,advanced design and reliable quality to crush and reduce volume before waste recycling.



This double shredding machine by the PLC automatic control,with which has start, stop,reverse andautomatic reverse in overload condition.



Multi Functional Heavy Duty Wood Shredder Twin Shaft for Bark Tree Leaf Stump 0

Multi Functional Heavy Duty Wood Shredder Twin Shaft for Bark Tree Leaf Stump 1

Multi Functional Heavy Duty Wood Shredder Twin Shaft for Bark Tree Leaf Stump 2

Multi Functional Heavy Duty Wood Shredder Twin Shaft for Bark Tree Leaf Stump 3



Parameters Model OPS-500SD
Motor 7.5KW*2
Gearbox JL4#-15*2
Input rotation 15rpm
Input torque 9148Nm
Shaft Φ70
Blade Φ200*20,9CrSi
Blade nos 24pcs
Inlet size 700*550*350mm
Outlet width 580mm
Outlet height to floor 200mm
Overall size 1840*650*1450mm
G.W ≈1000kg
Capacity: 150-200KG
Applications Light metals, plastics, kitchen wastes, wood, paper, etc.



Multi Functional Heavy Duty Wood Shredder Twin Shaft for Bark Tree Leaf Stump 4

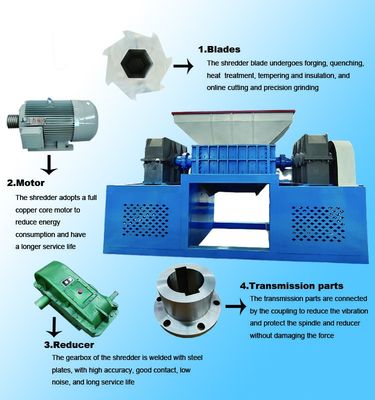

Main Features of Scrap Metal/Root Crusher Shredder



1.Low noise, less dust with high capacity.


2.Special thick plate precision machining combination frame, large angle hexagonal column of the strong rotation axis, large diameter solid into the hopper, so you can safely put into large raw materials.


3. In the thickness, shape, arrangement and other aspects of the design and processing of a unique rotary knife, shear strong,sharp blade, can be highly efficient broken.


4. Unique multiple combination sealing structure effectively blocks the contact of broken material and grease.


5. The moving blade material is made of special alloy tool steel forging blanks, precision machining, multiple heat treatments and low temperature freezing heat treatment technology.





Multi Functional Heavy Duty Wood Shredder Twin Shaft for Bark Tree Leaf Stump 5



FAQ:

1.What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company



2.What is the delivery time of your machine?

In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.



3.Can the machine be customized as our need, such as put on our logo?

Surely our machine can be customized as your need, Put on your logo is also available.



4.About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.



5.After we placing an order, will you arrange the installation of the machine at present?

All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be charged by you.
