Place of Origin: | P.R.CHINA |
Brand Name: | OTA |
Certification: | CE, ISO |
Model Number: | OPS-500D |
Minimum Order Quantity: | 1SET |
---|---|
Price: | USD1350-USD35000 |
Packaging Details: | WOODEN CASE |
Delivery Time: | 10-15DAYS |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000SETS/MONTH |
Name: | Heavy Duty Wood Shredder | Blade Quantity: | 2 |
---|---|---|---|
Blade Thickness: | 20mm | Cutting Speed: | 20m/min |
Feeding Size: | 200mm | Material: | Wood |
Noise Level: | ≤85dB | Cutting Capacity: | 200mm |
Dimension: | 1800x1200x1400mm | Power: | 7.5kW |
Rotating Speed: | 500rpm | Rotor Diameter: | 400mm |
Voltage: | 380V | Weight: | 1200kg |
Highlight: | Industrial Waste Plastic Shredder Machine,Waste Plastic Shredder Machine Double Shaft,Industrial Wood Pallet Shredder Machine |

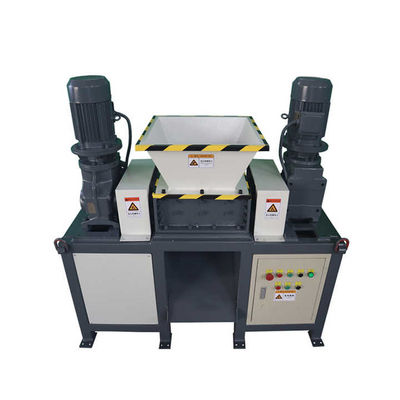

Industrial Waste Plastic Wood Pallet Double Shaft Shredding Machine
The Environmental Protection Double Shaft Shredder offers several benefits, including:
- Increased efficiency: The dual shaft design enables simultaneous shredding of wood materials from two directions, significantly improving the processing efficiency.
- Reduced waste volume: The shredding process reduces the volume of waste wood, making it easier to manage and transport.
- Environmental sustainability: By promoting waste wood recycling, the machine helps reduce landfill waste and conserves natural resources.
- Cost-effective: The Environmental Protection Double Shaft Shredder offers a cost-effective solution for waste management and recycling, helping businesses reduce their operating costs.
- Versatile application: The machine can be used in various industries, catering to different waste management and recycling needs.
The Environmental Protection Double Shaft Shredder is an innovative waste processing machine that offers numerous benefits for businesses and organizations seeking to manage and recycle waste wood materials. With its dual shaft design, high-quality construction, and environmental friendliness, this machine has become a preferred choice in the waste management industry. By investing in an Environmental Protection Double Shaft Shredder, businesses can not only reduce waste and improve efficiency but also contribute to a more sustainable future.
Parameters | Model OPS-500SD |
Motor | 7.5KW*2 |
Gearbox | JL4#-15*2 |
Input rotation | 15rpm |
Input torque | 9148Nm |
Shaft | Φ70 |
Blade | Φ200*20,9CrSi |
Blade nos | 24pcs |
Inlet size | 700*550*350mm |
Outlet width | 580mm |
Outlet height to floor | 200mm |
Overall size | 1840*650*1450mm |
G.W | ≈1000kg |
Capacity: | 150-200KG |

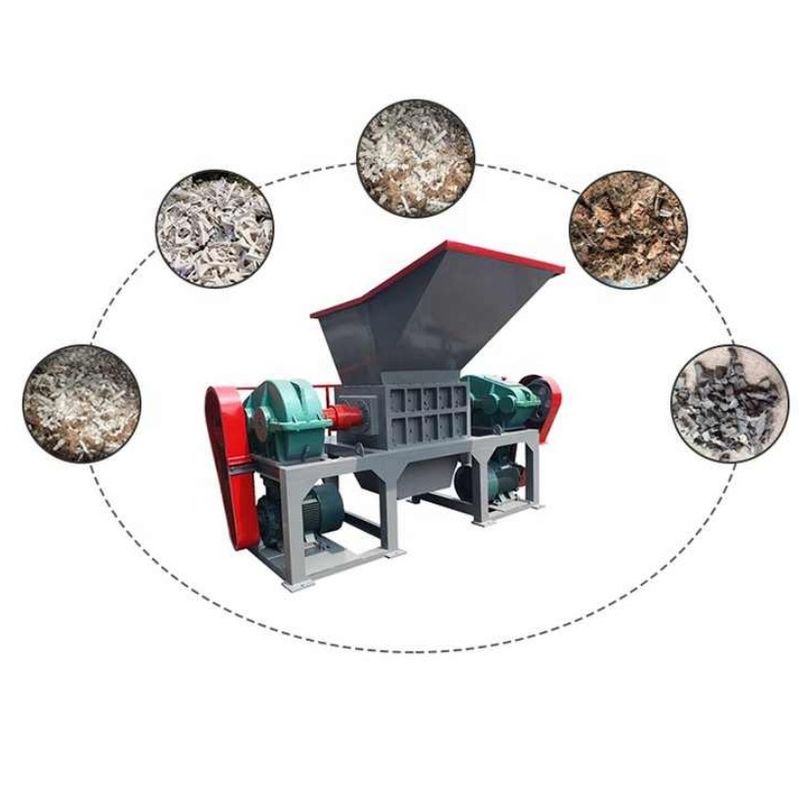

Applications | Light metals, plastics, kitchen wastes, wood, paper, etc. |
Compared with traditional single-shaft shredders, dual-shaft shredders have the following advantages:
1. High efficiency: The dual-shaft shredder uses two cutter shafts to work at the same time, which greatly improves the crushing efficiency and shortens the processing time.
2. Wide applicability: The double-shaft shredder can process various types of industrial waste, such as plastics, wood, tires, fibers, etc., and has strong versatility.
3. Environmental protection performance: The double-shaft shredder fully considers environmental protection requirements when designing, and adopts a sealed structure to effectively prevent material splashing and reduce noise and dust pollution.
4. Durability: The knives of the double-shaft shredder are made of high-quality materials, which have good wear resistance and corrosion resistance and have a long service life.
5. Easy to maintain: The double-shaft shredder adopts a modular design, making it easy and quick to disassemble and replace parts, reducing the maintenance cost of the equipment.
6. Safety: The double-shaft shredder is equipped with an emergency stop button and a protective cover is set up in the operating area to ensure the personal safety of the operator.
FAQ:
1.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company
2.What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
3.Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
4.About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
5.After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be charged by you.
