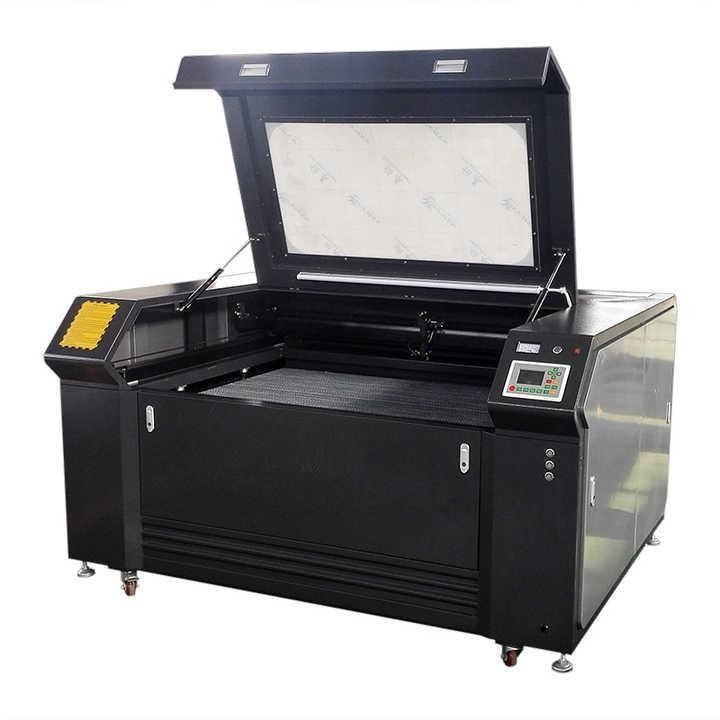

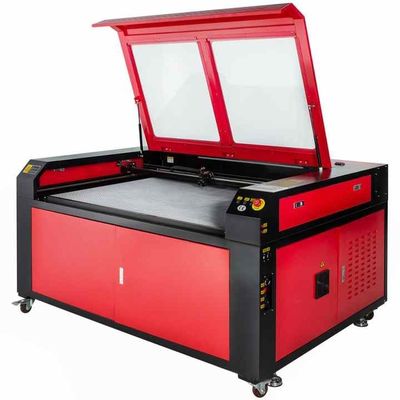

4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W

4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W

4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W
4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W
4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W
Product Details:
Place of Origin: P.R.CHINA
Brand Name: OTA
Certification: CE, ISO
Model Number: OTDK1390
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD450-USD3180
Packaging Details: WOODEN CASE
Delivery Time: 10-15DAYS
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000SETS/MONTH
Contact Now
Detailed Product Description
Cooling Mode: Air Cooling Engraving Area: 400mm*400mm
Engraving Depth: 0.01-0.2mm Engraving Speed: 0-400mm/s
Laser Wavelength: 10.6um Minimum Character: 0.5mm
Positioning Accuracy: 0.01mm Product Name: Laser Engraving Machine
Working Humidity: 5-95% Name: Laser Engraving Machine
Highlight:

CO2 CNC Laser Engraving Cutting Machine

,

CNC Laser Engraving Cutting Machine 100W

,

CNC Laser Engraving And Cutting Machine 100W

100W 130W 150W 4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine



Product Descriptions:

This laser cutting machine mainly used for the engraving and cutting on acrylic, wood, variety of plastic, Fabrics (silk fabrics, cotton fabrics, decorative fabrics, polyester fabrics, synthetic fabrics,), leather (leather, artificial leather, decorative leather, packaging leather, soft-leather), cardboard and other supplies, and all kinds of non-metal material.

This advanced laser cutting machine is not only suitable for engraving and cutting on acrylic, wood, various plastics, and a range of fabrics, but it can also handle more challenging materials such as glass, ceramic, and even some types of metal. It has a high-power laser that can cut through even the toughest materials with ease, making it an invaluable tool for a wide range of industries. Whether you're in the signage, printing, crafts, or any other industry that requires precise cutting and engraving, this laser cutting machine can handle the job with ease.

4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W 0





4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W 1

4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W 2

4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W 3

4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W 4

4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W 5

Mode MT-1390
Work Area (mm) 1300*900
Laser Generator Water cooled Co2 glass sealed laser tube
Laser Power 30W/150W(Optional)
Drive Motors Micro stepping stepper motor system
Control System 64 Bit DSP
PC Interface USB 2.0 Port,USB Disk
Cutting Speed 0-36000mm/min
Engraving Speed 0-64000mm/min
Resolution Ratio <4000dp
Power Supply AC110V/220V-240V±10%,50HZ
Location Precision <0.05mm
Operating Temperature 0°C-45℃
Graphic Format Supported HPGL(PLT),JPGE,PCS,TGA,DST
DXP,DXF,DWG,CDR
Optional Engraving Device (cylinder)Dia(10~100)(50~300)mm
Dual Laser Head No
Gross Power <1250W
Engraving Parts Thickness (mm) 0-140
Weight (kg) 580
Warranty 12 Months


Advantages:

1.Laser Engraving machine can be applied to different kinds of materials and has many advantages such as smooth  cutting edges, free from polishing, noise free, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries.



2.Heavy body more steady difficult deformation and protect rust.Multi function one machine can cut ,engraving & scan .Have fine cutting and engraving effect and price advantage.Support U-download data, support off-line.



3.Emergency stop (turn off the machine immediately when there is an accident)color layer setting(change the working speed and power by using color settings).Glass viewing windows creating a safe enclosure for laser processing.



4.Adopt imported Linear Guiding System and ensure the machines endurability.



5.The Optical Lens adopt high intensity gilding silicon and non sphere focusing lens, So the Lens. Can endure the scrubs and the high temperature and no need no be often changed, thus reduce the resuming cost. The focusing diameter of the non sphere lens is small, and make the cutting effect better.



6.High Quality Laser tube provides the Strong beam and Long service life.



4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W 6

4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W 7

4060 6090 Nonmetal CO2 CNC Laser Engraving Cutting Machine 100W 130W 150W 8
