Place of Origin: | P.R.CHINA |
Brand Name: | OTA |
Certification: | CE, ISO |
Model Number: | OTDK1390 |
Minimum Order Quantity: | 1SET |
---|---|
Price: | USD450-USD3180 |
Packaging Details: | WOODEN CASE |
Delivery Time: | 10-15DAYS |
Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 2000SETS/MONTH |
Product Name: | 1390 Laser Engraving Machine | Cooling Mode: | Air Cooling |
---|---|---|---|
Engraving Area: | 400mm*400mm | Engraving Depth: | 0.01-0.2mm |
Engraving Speed: | 0-400mm/s | Laser Wavelength: | 10.6um |
Minimum Character: | 0.5mm | Positioning Accuracy: | 0.01mm |
Working Humidity: | 5-95% | Name: | Laser Engraving Machine |
Highlight: | 1390 Laser Engraving Machine Glass,3D Crystal Laser Engraving Machine,Laser 3D Crystal Engraving Machine |

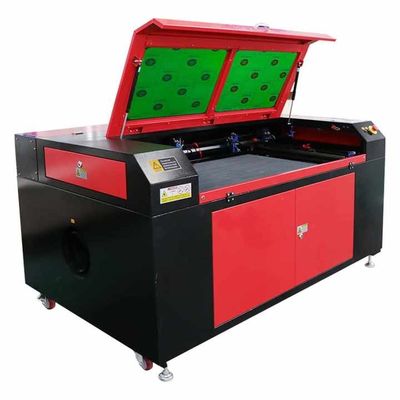

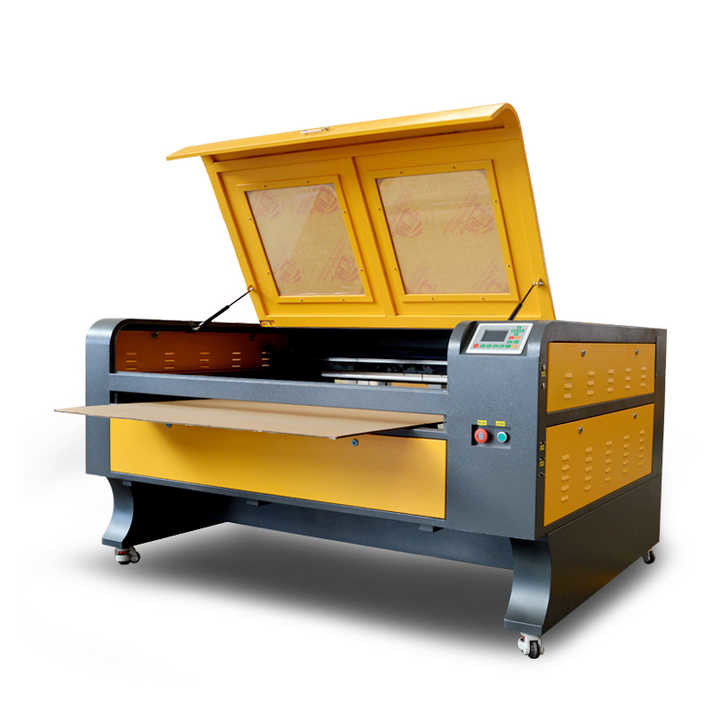

Laser 1390 And Cutting Glass 3d Crystal 2d Wood Engraving Machine
Product Descriptions:
This laser cutting machine mainly used for the engraving and cutting on acrylic, wood, variety of plastic, Fabrics (silk fabrics, cotton fabrics, decorative fabrics, polyester fabrics, synthetic fabrics,), leather (leather, artificial leather, decorative leather, packaging leather, soft-leather), cardboard and other supplies, and all kinds of non-metal material.
This advanced laser cutting machine is not only suitable for engraving and cutting on acrylic, wood, various plastics, and a range of fabrics, but it can also handle more challenging materials such as glass, ceramic, and even some types of metal. It has a high-power laser that can cut through even the toughest materials with ease, making it an invaluable tool for a wide range of industries. Whether you're in the signage, printing, crafts, or any other industry that requires precise cutting and engraving, this laser cutting machine can handle the job with ease.
Model | 1390 |
Worktable | honeycomb or blade |
Eneraving area | 1300900mm |
Laser Power | 60w/80w/100w/150w/300w |
Engraving Speed | 060000mm/min |
Engraving Depth | 5mm |
Cutting Speed | 0-5000mm/min |
Cutting Depth(Acrylic) | 0-30mm(acrylic |
Up and down worktable | Ec Up and down 550mm adjustable |
Minimum Shaping Character | 1X Imm |
Resolution Ratio | 0.0254mm(1000dpi) |
Power Supply | 220V(or110V)+/-10%50Hz |
Resetting Positioning | Accuracyless than or equalto 0.01mm |
Water protecting sensor and alarm | Yes |
Operating Temperature | 0-45°℃ |
Operating Humidity | 35-70℃ |
Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
Operation System | Windows 98/ME/2000/XP/VISTA/Windows 7/8 |
Software | RDWorks/LaserCAD |
Engraving on Curve Surfaces(Yes/No | No |
Control Configuration | DSP |
Water Cooling(Yes/No | Yes |
Maximum Height Of Materials To Engrave(mm) |
120mm |
Laser Tube | Sealed CO2 glass lasertube |
Machine Dimension | 1840×1400×1030(mm |
Packing Dimension | 2040×1600×1320mm |
Factory & Stocks
Packing & shipping
Certificate
Contact Person: Mrs. Shiny
Tel: 8615895355226
