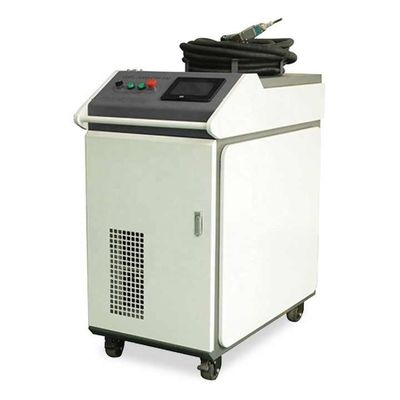

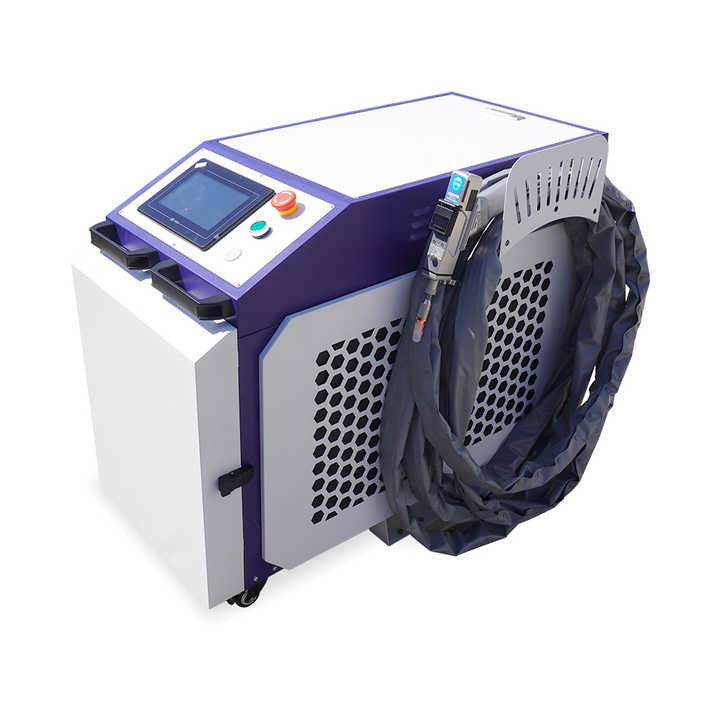

Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine

Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine

Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine
Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine
Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine
Product Details:
Place of Origin: P.R.CHINA
Brand Name: OTA
Certification: CE, ISO
Model Number: OTQX-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD2350-USD5980
Packaging Details: WOODEN CASE
Delivery Time: 10-15DAYS
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 2000SETS/MONTH
Contact Now
Detailed Product Description
Cleaning Depth: 0-1mm Cleaning Efficiency: ≥99.9%
Control System: PLC Laser Pulse Frequency: 1-20KHz
Power Supply: 220V/50Hz Product Name: Laser Cleaning Machine
Scanning Angle: 0-360° Scanning Speed: 1-1000mm/s
Size: 1000*800*1500mm Spot Size: 0.1-3mm
Working Environment: Indoor
Highlight:

Handheld Metal Laser Welding Machine

,

Hand Held Metal Laser Welding Machine

,

Multifunctional Fiber Welding Cleaning Machine

Multifunction Portable Hand Held Metal Fiber Laser Cleaning Welding Machine



Product descriptions:



The 3 in 1 laser welding cleaning cutting machine can not only clean the metal surface contaminants, but also weld and cut various metal materials. It is a multi-functional laser equipment. And it has three modes of welding cleaning and cutting, which can be flexibly switched.

Laser power: 1000W 1500W 2000W

Laser source brand: Raycus/Jpt/Max/Reci(optional)

Fiber laser width: 10m (optional)
Cooling system: water cooling
Air system: air compressor
Application: thin stainless steel plates, carbon steel plates, galvanized sheets, ect
Features:

1.High efficiency.

2.Simple interface operation.

3.Hand-held design is easy to carry.

4.No consumables

Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine 0

Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine 1

Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine 2



Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine 3





Laser Power 1000W 1500W 2000W 3000W
Welding depth
(SS)
2.68mm 3.59mm 4.57mm 6.87mm
Welding depth
(CS)
2.06mm 2.77mm 3.59mm 4.79mm
Welding depth (Al) 2mm 3mm 4mm 6mm
Feeding Wires
Dimenson
0.8-1.2 wire 0.8-1.6 wire 0.8-1.6 wire 0.8-2.0 wire
Laser Wavelength 1070+/-10 nm 1070+/-10 nm
Laser Frenquency 50-5000HZ 50-5000HZ
Position System Red Light Indicator Red Light Indicator
Power Adjustment 10-100% 10-100%
Cooling Method Water Chiller Water Chiller
Spot Size 1.2-3.0mm(option) 1.2-3.0mm(option
Welding Head Wobble Laser Welding Head Wobble Laser Welding Head
Power Instability <3% <3%
Shielding Gas Flow 15-20 L/min (Ar Or N) 15-20 L/min (Ar Or N)
Power Supply 220V 50860HZ 220V/380V /50860HZ
Size(L*W*H)CM 90*40*70 90*40*70 115*65*87
Net Weight 190KG 210KG 220KG 230KG
Total Powe
Consumption
≤3KW ≤4.5KW ≤6KW ≤9KW



Advantages of laser welding machine:

1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high,
the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.



Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine 4





Factory & Stocks

Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine 5

Packing & shipping

Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine 6

Certificate

Portable Handheld Metal Laser Welding Machine Multifunctional Fiber Welding Cleaning Machine 7
