| Place of Origin: | P.R.CHINA |
| Brand Name: | OTA |
| Certification: | CE, ISO |
| Model Number: | OTQX-1000 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | USD2350-USD5980 |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 10-15DAYS |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 2000SETS/MONTH |
| Product Name: | Handheld Laser Welding Machine For Stainless Steel | Cleaning Depth: | 0-1mm |
|---|---|---|---|
| Cleaning Efficiency: | ≥99.9% | Control System: | PLC |
| Laser Pulse Frequency: | 1-20KHz | Power Supply: | 220V/50Hz |
| Scanning Angle: | 0-360° | Scanning Speed: | 1-1000mm/s |
| Size: | 1000*800*1500mm | Spot Size: | 0.1-3mm |
| Working Environment: | Indoor | ||
| Highlight: | 3 In 1 Handheld Laser Welding Machine,Handheld Laser Welder For Aluminum,Handheld Laser Welding Machine For Stainless Steel |
||

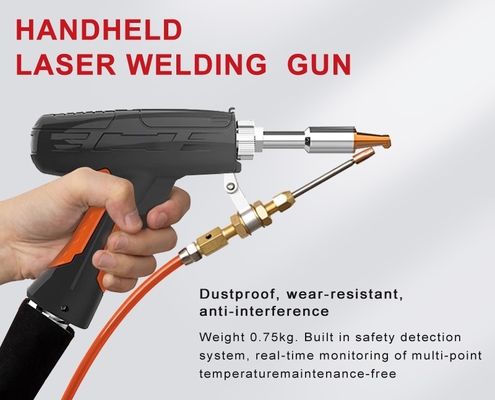

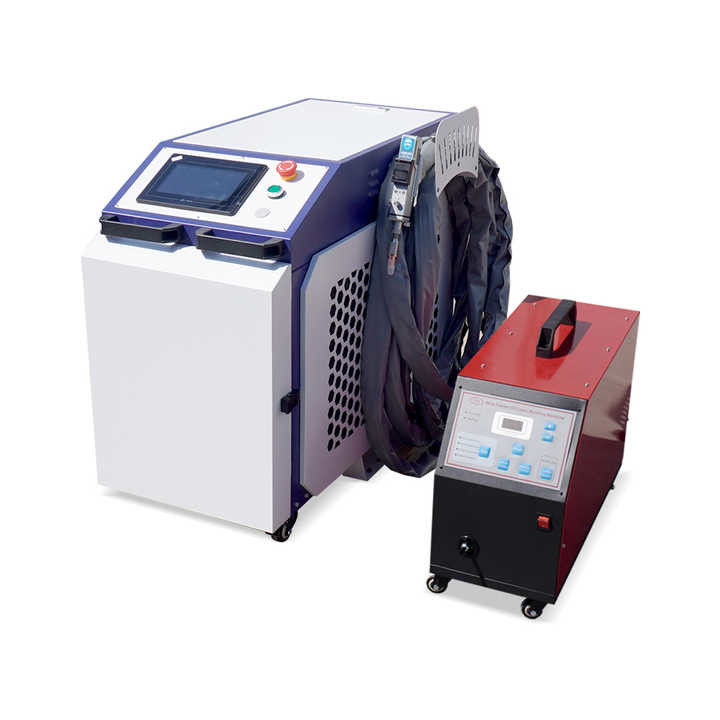

Handheld Fiber Laser Cutting Welding Cleaning Machine for Stainless Steel
Product descriptions:
The 3 in 1 laser welding cleaning cutting machine can not only clean the metal surface contaminants, but also weld and cut various metal materials. It is a multi-functional laser equipment. And it has three modes of welding cleaning and cutting, which can be flexibly switched.
Laser power: 1000W 1500W 2000W
Laser source brand: Raycus/Jpt/Max/Reci(optional)
Fiber laser width: 10m (optional)
Cooling system: water cooling
Air system: air compressor
Application: thin stainless steel plates, carbon steel plates, galvanized sheets, ect
Features:
1.High efficiency.
2.Simple interface operation.
3.Hand-held design is easy to carry.
4.No consumables
| Product Specification | ||||
| Mode | OTQX-1000 | OTQX-1500 | OTQX-2000 | OTQX-3000 |
| Laser source power | 1000w | 1500w | 2000w | 3000w |
| Laser wavelength | 1080±10mm | |||
| Laser type | Continuous/Modulation | |||
| Maximum Modulation Frequency | 20khz | |||
| Cable length | 10m(15m can be customized)20m(Standard for BLC3000 | |||
| Scan Width | 10-160mm | |||
| Power configuration | AC 220V±10% | AC 380V±7% | ||
| 6KW | 8KW | 10KW | 13KW | |
| Cooling method | Water cooling (Medium:Deionized water,distilled water or purified water ) | |||
| Machine Dimension | 845*460*605mm | 905*480*630mm | 1240*584*1148m m |
|
| Packing Dimension | 1120*565*1050mm | 1430*720*1220m m |
||
| Net weight | 106kg | 113kg | 137kg | 235kg |
| Gross Weight | 138kg | 145kg | 169kg | 280kg |
| Water tank Capacity |
16L(14-15L of water to be added | |||
Applications:
Metalsurface rust removal, Surfacepaint removal and paint treatment, Surfaceoil, stains, dirt cleaning, Surfacecoating, clear coating, Weldingsurface / spray surface pretreatment, Stonesurface dust and attachment removal, Rubbermold residue cleaning.
A Metal surface cleaning
B Removal paint of metal surface
C stains cleaning on the surface
D Surface coating cleaning
E Pre-treatment of welding surface cleaning
F Stone surface cleaning
G Rubber mold residue cleaning
