| Place of Origin: | P.R.CHINA |
| Brand Name: | OTA |
| Certification: | CE, ISO |
| Model Number: | OPS-500SD |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | USD1350-USD2980 |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 10-15DAYS |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000SETS/MONTH |
| Name: | Plastic PET Bottle Crusher Machine | Application: | Plastic Shredding |
|---|---|---|---|
| Blade: | SKD-II Or As Customer Requirement | Voltage: | 380V |
| Warranty: | 1 Year | Bearing Brand: | NSK Or SKF Or Wafandian |
| Blades Material: | SKD11 Or DC53 | Hs Code: | 8477.8000 |
| Highlight: | Dual Axis Waste Recycling Crusher,Multi Purpose Plastic PET Bottle Crusher Machine,Dual Axis Plastic PET Bottle Crusher Machine |
||

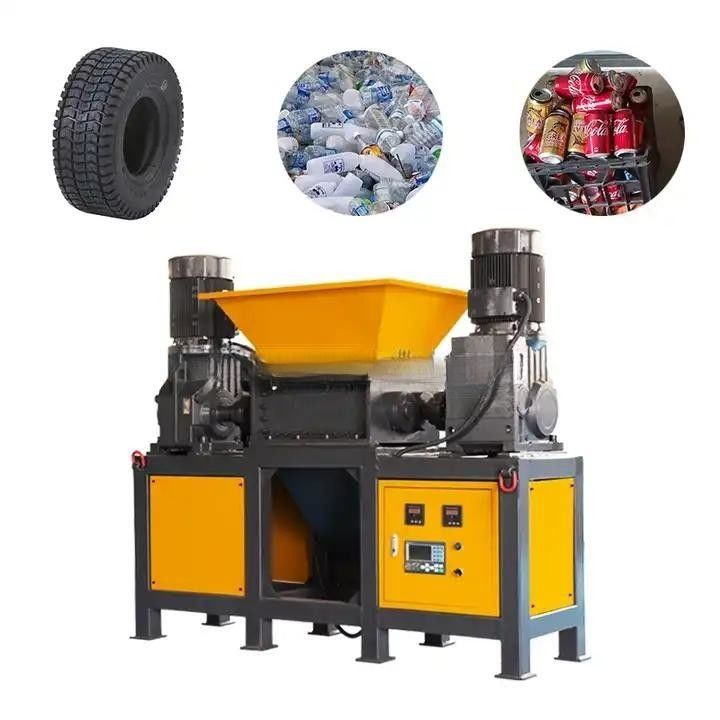

Multi Purpose Dual-axis Plastic Pet Bottles Waste Recycling Shredder Crusher
Product description:
This Waste Recycling Shredder Crusher is a highly efficient and environmentally friendly machine.
It is designed to shred and crush plastic pet bottles, converting them into small particles that are easy to recycle.
The machine features a dual-axis design, which allows for continuous operation and high throughput.
Additionally, it is equipped with a powerful motor and sharp blades, ensuring quick and efficient shredding of plastic bottles.

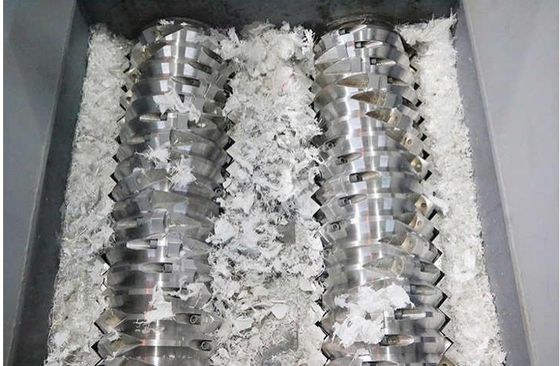

The shredder blade is forged, annealed, heat-treated, tempered and insulated, on-line cutting and fine grinding.
Gearbox adopts steel welding precision High, good contact, low voice long lasting.
Power surging,Strong power comes from a good motor,Durable,Worry-free quality, long-lasting operationMute and low noise,Tai Chi turbine impeller rotates,Can effectively reduce noise.
Selected hard alloy powder, high temperature after precision molding
| Parameters | Model OPS-500SD |
| Motor | 7.5KW*2 |
| Gearbox | JL4#-15*2 |
| Input rotation | 15rpm |
| Input torque | 9148Nm |
| Shaft | Φ70 |
| Blade | Φ200*20,9CrSi |
| Blade nos | 24pcs |
| Inlet size | 700*550*350mm |
| Outlet width | 580mm |
| Outlet height to floor | 200mm |
| Overall size | 1840*650*1450mm |
| G.W | ≈1000kg |
| Capacity: | 150-200KG |
| Applications | Light metals, plastics, kitchen wastes, wood, paper, etc. |
Features:
This recycling shredder is not only suitable for plastic pet bottle recycling, but can also be used for other types of plastic waste. It provides an efficient and convenient solution for plastic recycling, helping to reduce the amount of waste sent to landfills and improve the sustainability of the recycling process.
Moreover, this machine is easy to operate and maintain. It comes with a user-friendly interface, allowing operators to monitor the shredding process and adjust settings as needed. The shredded plastic particles can be easily collected and sent for further processing or reuse.
Overall, the Multi Purpose Dual-axis Plastic Pet Bottles Waste Recycling Shredder Crusher is a crucial tool for plastic recycling facilities, helping to convert waste into valuable resources and promote a sustainable circular economy.
