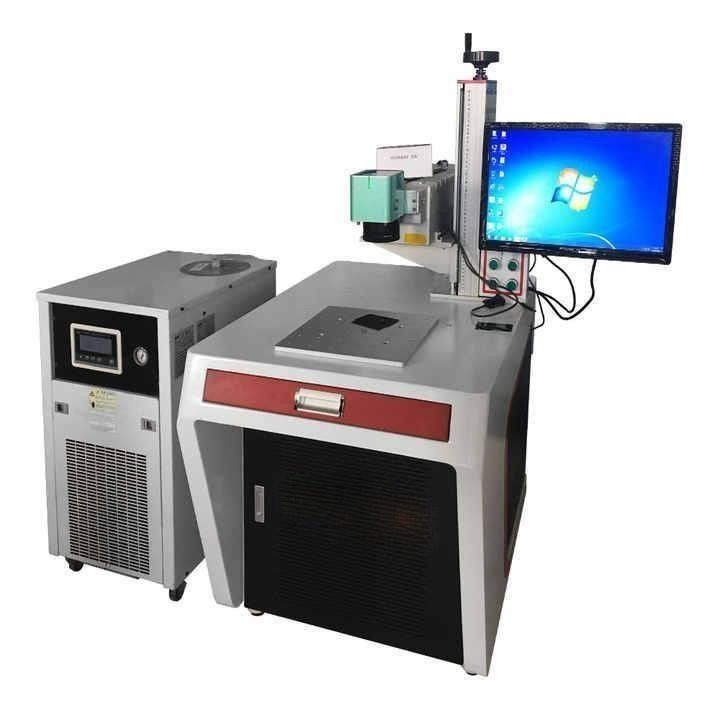

Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker

Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker

Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker
Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker
Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker
Product Details:
Place of Origin: P.R.CHINA
Brand Name: OTA
Certification: CE, ISO
Model Number: OJU5
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD1350-USD3180
Packaging Details: WOODEN CASE
Delivery Time: 10-15DAYS
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 2000SETS/MONTH
Contact Now
Detailed Product Description
Name: Enclosed Laser Marking Machine Cooling System: Air Cooling
Laser Source: UV Laser Machine Size: 600mm*600mm*1200mm
Marking Area: 110mm*110mm Marking Depth: 0.01-0.2mm
Marking Line Width: 0.01mm Marking Speed: 7000mm/s
Minimum Character Size: 0.15mm Power Supply: 220V/50Hz
Highlight:

Small Enclosed Laser Marking Machine

,

Enclosed Laser Marking Machine 2W

,

5W UV Laser Marker

Small Enclosed Laser Marker 2w 3w 5w Uv Laser Marking Machine For Mirror



Product descriptions:



It is suitable for marking on the vast majority of metal and non-metal materials, especially for the high-end market of ultra-fine processing. The UV laser machine marks on the surface of packaging bottles of cosmetics, drugs, food and other polymer materials, fine marking effect, clear and permanent marks, superior to ink jet printing and pollution-free; flexible PCB plate marking, scribing; silicon wafer micro hole and blind hole processing; LCD smart glass QR code marking , glassware surface drilling, metal surface coating marking, plastic buttons, electronic components, gifts, communication equipment, building materials, etc. It can be used for working with production line, automatic loading and unloading, automatic feeding and ejection.

Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker 0



Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker 1

The size of the working field depends on the installed lens:

110×110,200×200,300×300 mm.

The machine has a working field of 200×200 mm asstandard.

lf you are working with small layouts,it is better to put a lenswith a smaller working field of 110×110 mm,the beam will bethinner,and the result of work will be better.





Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker 2

The design of the machine implies the ability to turn the marking module at the desired angle and fix the tripod ina way that isconvenient forprocessing overall products. Also, if necessary, the marking module(scanner) can be removed from the tripod and suspended from theceiling. This is used when engravinglarge-sized workpieces.



All OTA markers have an easy-to-use rotary device for marking onround or cylindrical items. The device securely but delicately holds products even made of fragile materials without damaging them or leaving scratches on the surface.



The EZCAD software is extremely powerful and unleashesthe potential of any source, enabling both color engravingand depth engraving. The operator can change the layout or mode of operation of the laser for optimal use in realtime. One of the dvantages of this software is the presence of built -in modes for marking keyboards, barcodes, serial numbers, QR codes, etc.



Model UV3W UV5W
wavelength 355nm 355nm
Output Power >3W@30HKz >5W@40HKz
Maximum single pulse

energy

0.1mJ@30KHz

0.12mJ@40KHz
pulse repetition
frequency
1-150KHz 1-150KHz
Pulse Width <15ns@30KHz <18ns@30KHz
Average power
stability

<3%

<3%
Spatial mode TEMoo(M2<1.5) TEMoo(M2<1.5)
Degree of polarization >100:1 Horizontal >100:1 Horizontal
Output port spot size 0.7mm 0.8mm
Spot roundness >90% >90%





Samples display

Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker 3

Optional accessories:

Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker 4



Factory & Stocks

Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker 5

Packing & shipping

Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker 6

Certificates

Small Enclosed Laser Marking Machine 2W 3W 5W UV Laser Marker 7



FAQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit →mass production
→cargo ready → balance/delivery → further cooperation

Q: What payment methods do you accept?
A: T/T, L/C, Alibaba pay, cash, paypal etc. Or other payment methods negotiated by us.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 99% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We can
provide team viewer/ Whatsapp/ Email/ Phone/ Skype with can till all of your problems finished.

Q: How do your factory do regarding quality control?
A: Quality is priority. Each machine will be tested by 24 items. After all the 24 items passed, then our QC do 48~72 hours
reliability test.

Q:Do you provide customs clearance?
A:Yes, we provide DDP service in many countries.
