Place of Origin: | P.R.CHINA |
Brand Name: | OTA |
Certification: | CE, ISO |
Model Number: | OPS-500SD |
Minimum Order Quantity: | 1SET |
---|---|
Price: | USD1350-USD2980 |
Packaging Details: | WOODEN CASE |
Delivery Time: | 10-15DAYS |
Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 2000SETS/MONTH |
Name: | Automatic Paper Shredder Machine | Application: | Plastic Shredding |
---|---|---|---|
Voltage: | 380V | Warranty: | 1 Year |
Bearing Brand: | NSK Or SKF Or Wafandian | Control: | Siemens PLC Control |
Diameter Rotary: | 320mm | Marketing Type: | Ordinary Product |
Raw Material: | Plastic Bottle, Plastic Drum | ||
Highlight: | Automatic Scrap Plastic Recycling Machine,Heavy Duty Scrap Plastic Recycling Machine,Durable Automatic Paper Shredder Machine |

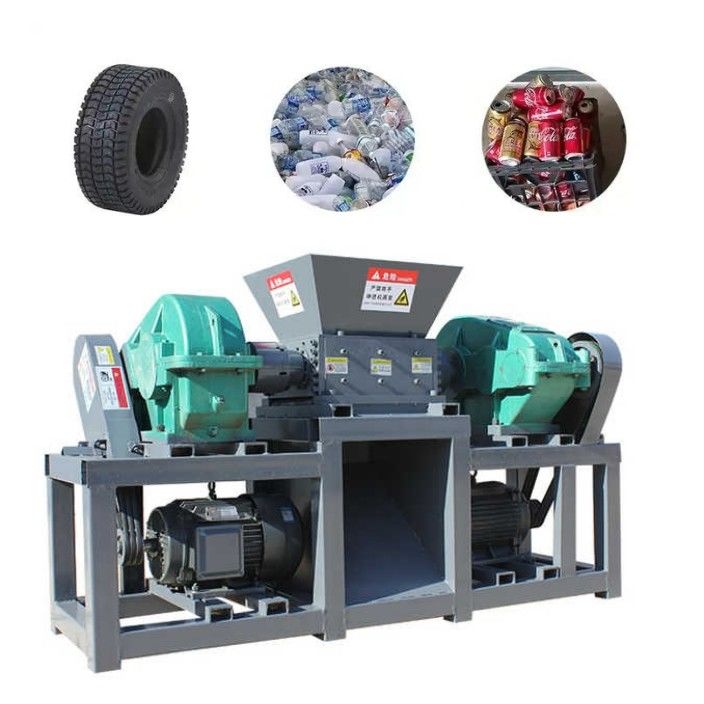

Automatic Paper Scrap Plastic Recycling Heavy Duty Shredder Machine
Product description:
This automatic shredding plastic recycling heavy-duty paper shredder is an efficient, environmentally friendly device suitable for processing large amounts of waste paper and plastic products.
It uses advanced paper shredding technology that can quickly break paper and plastic into tiny pieces for easy subsequent recycling and processing. At the same time, the equipment also has automatic feeding and discharging functions, which greatly improves production efficiency. In addition, the equipment is equipped with safety protection devices to ensure the safety of operators.
If you need to process large amounts of waste paper and plastic products, this automatic paper shredding plastic recycling heavy-duty shredder will be your ideal choice.
The shredder blade is forged, annealed, heat-treated, tempered and insulated, on-line cutting and fine grinding.
Gearbox adopts steel welding precision High, good contact, low voice long lasting.
Power surging,Strong power comes from a good motor,Durable,Worry-free quality, long-lasting operationMute and low noise,Tai Chi turbine impeller rotates,Can effectively reduce noise.
Selected hard alloy powder, high temperature after precision molding
Parameters | Model OPS-500SD |
Motor | 7.5KW*2 |
Gearbox | JL4#-15*2 |
Input rotation | 15rpm |
Input torque | 9148Nm |
Shaft | Φ70 |
Blade | Φ200*20,9CrSi |
Blade nos | 24pcs |
Inlet size | 700*550*350mm |
Outlet width | 580mm |
Outlet height to floor | 200mm |
Overall size | 1840*650*1450mm |
G.W | ≈1000kg |
Capacity: | 150-200KG |
Applications | Light metals, plastics, kitchen wastes, wood, paper, etc. |
How to use:
When using a shredder, proper use of some tips can increase the output of the shredder, reduce energy consumption, and reduce the occurrence of shredder failures. Do not feed the shredder for two minutes after starting up.
Let the shredder equipment idle for two minutes before feeding. Before the shredding work is carried out, the materials to be shredded can be planned and classified first, and the materials of the same material and size can be divided into categories.
The same kind of materials can be put in together, which can improve the working efficiency of the shredder and increase the output.
In addition, after the feeding of the shredder is completed, all materials must be discharged before shutting down the shredder equipment to prevent the shredder from holding up and burning the motor after the next startup.
