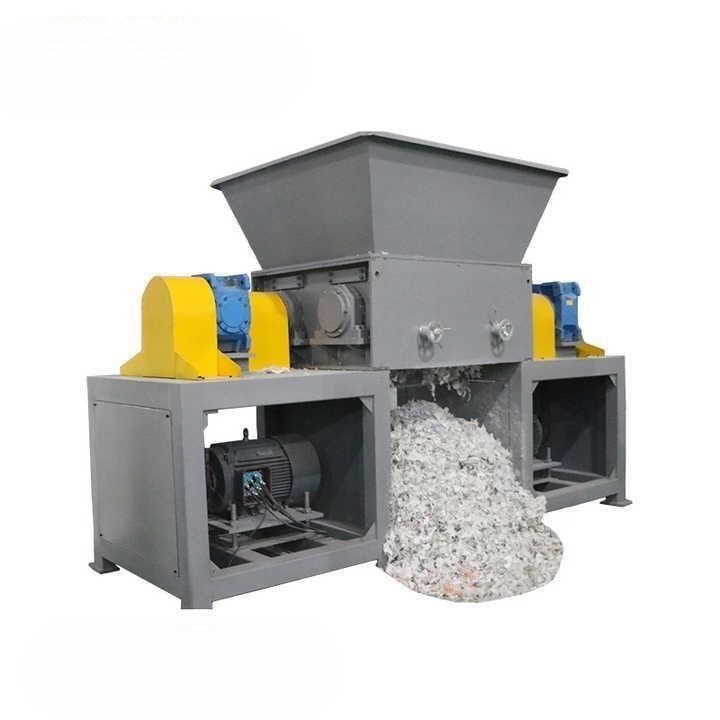

380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine

380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine

380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine
380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine
380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine
Product Details:
Place of Origin: P.R.CHINA
Brand Name: OTA
Certification: CE, ISO
Model Number: OPS-500SD
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD1350-USD2980
Packaging Details: WOODEN CASE
Delivery Time: 10-15DAYS
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000SETS/MONTH
Contact Now
Detailed Product Description
Application: Plastic Shredding Blade: SKD-II Or As Customer Requirement
Voltage: 380V Warranty: 1 Year
Bearing Brand: NSK Or SKF Or Wafandian Blades Material: SKD11 Or DC53
Hs Code: 8477.8000 Name: Plastic Recycling Grinder Machine
Highlight:

380V Plastic Recycling Grinder Machine

,

CE Plastic Shredder Recycling Machine

,

Plastic Chopper Shredder Machine



Plastic Grinder Woven Bag Polypropylene Fiber Plastic Chopping Shredder

Product description:


The working principle of Plastic Chopping Shredder is to use high-speed rotation of the cutting knife to cut the plastic waste into small particles.



The blade is made of high-quality steel material, which has good wear resistance and corrosion resistance.



The grinder uses a woven bag to collect the shredded plastic particles, which not only ensures the cleanliness of the workshop, but also reduces the frequency of cleaning the machine and saves time and manpower.


380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine 0

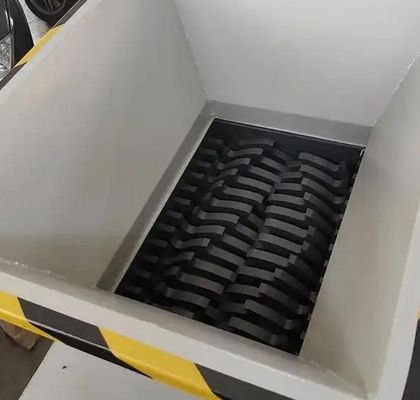

The shredder blade is forged, annealed, heat-treated, tempered and insulated, on-line cutting and fine grinding.

380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine 1



Gearbox adopts steel welding precision High, good contact, low voice long lasting.



380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine 2



Power surging,Strong power comes from a good motor,Durable,Worry-free quality, long-lasting operationMute and low noise,Tai Chi turbine impeller rotates,Can effectively reduce noise.



380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine 3

Selected hard alloy powder, high temperature after precision molding

380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine 4



Parameters Model OPS-500SD
Motor 7.5KW*2
Gearbox JL4#-15*2
Input rotation 15rpm
Input torque 9148Nm
Shaft Φ70
Blade Φ200*20,9CrSi
Blade nos 24pcs
Inlet size 700*550*350mm
Outlet width 580mm
Outlet height to floor 200mm
Overall size 1840*650*1450mm
G.W ≈1000kg
Capacity: 150-200KG
Applications Light metals, plastics, kitchen wastes, wood, paper, etc.


Features:



It is a kind of machine that can grind and shred plastic waste into small particles. It is widely used in the recycling and disposal of plastic waste, and can help reduce the volume of plastic waste and facilitate its reuse and processing.



It has the characteristics of simple operation, high efficiency, low noise and low power consumption. It can process various types of plastic waste, such as polyethylene, polypropylene, polyvinyl chloride and other plastic bags, films, packaging materials, etc.



In addition, Plastic Grinder Woven Bag Polypropylene Fiber Plastic Chopping Shredder also has a variety of models to meet different processing needs. The power supply can be selected according to the specific requirements of users, and the output size of the shredded particles can also be adjusted according to the needs.



Finally, Plastic Grinder Woven Bag Polypropylene Fiber Plastic Chopping Shredder is an important equipment for plastic waste recycling and disposal, which can help achieve the goal of reducing resource waste and environmental pollution.



380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine 5

            WORKING FIELD
380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine 6
380V Plastic Recycling Grinder Machine Polypropylene Fiber Plastic Chopper Shredder Machine 7
