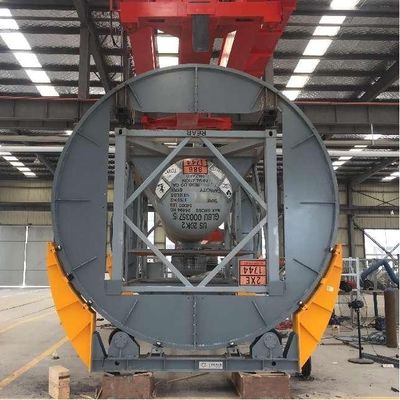

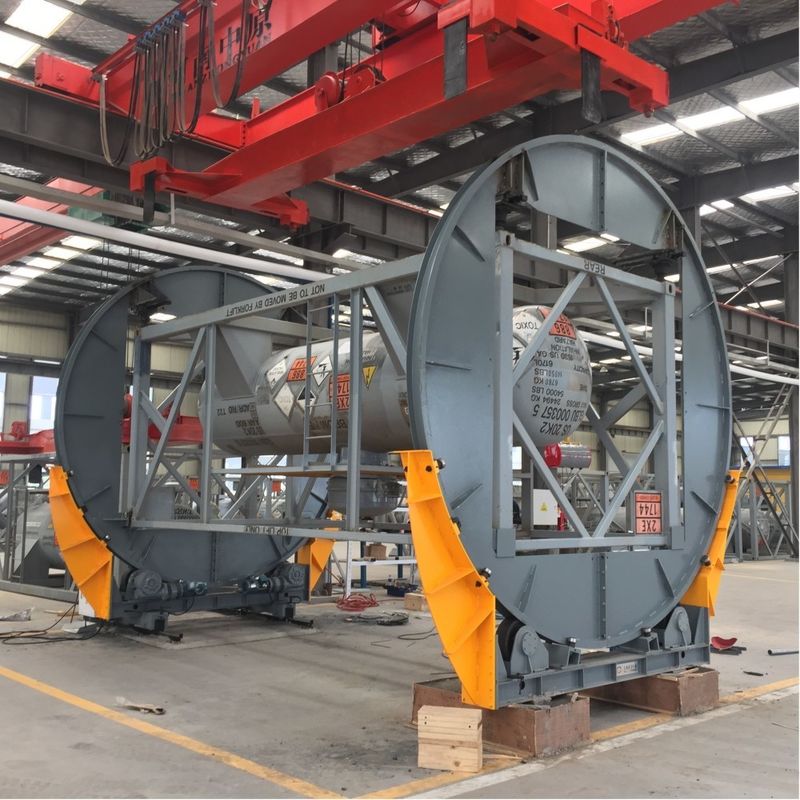

Large Automatic Turning Rolls ISO Tank Rotator 20ft 40ft Swap ISO Tank Container Rotation Machine

Large Automatic Turning Rolls ISO Tank Rotator 20ft 40ft Swap ISO Tank Container Rotation Machine

Large Automatic Turning Rolls ISO Tank Rotator 20ft 40ft Swap ISO Tank Container Rotation Machine
Large Automatic Turning Rolls ISO Tank Rotator 20ft 40ft Swap ISO Tank Container Rotation Machine
Large Automatic Turning Rolls ISO Tank Rotator 20ft 40ft Swap ISO Tank Container Rotation Machine
Product Details:
Place of Origin: P.R.CHINA
Brand Name: OTA
Certification: CE, ISO
Model Number: GKT-C5
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD10550-USD21500
Packaging Details: Naked
Delivery Time: 30-50DAYS
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50SETS/MONTH
Contact Now
Detailed Product Description
Product Name: Tank Container Rotation Machine Color: Customized
Container Size: 20-40ft Control Mode: Manual/Automatic
Material: Stainless Steel/Carbon Steel Operation Mode: Remote Control/Button Control
Power Consumption: 1.5KW Power Supply: AC220V/50Hz
Rotation Angle: 360° Safety Protection: Emergency Stop/Overload Protection
Speed: 0.1-1.0r/min Weight Capacity: 30T
Working Environment: Indoor/Outdoor Working Temperature: -20℃~+45℃
Highlight:

ISO Tank Rotator 20ft

,

ISO Rotator 40ft

,

ISO Tank Container Rotation Machine

Large Automatic Turning Rolls Variable Speed Revolving 20ft 40ft Swap Iso Tank Container Rotation Machine



Product Descriptions:



Tank Container Rotation Machine is a highly advanced machine that is used for the rotation of ISO tanks and containers. It features a large automatic turning roll system that allows for variable speed revolving of the tanks and containers. The machine has aSwap function that allows for the quick and easy exchange of tanks and containers, reducing downtime and increasing efficiency. The machine is designed to handle both 20ft and 40ft containers, making it a versatile and efficient solution for a wide range of applications.



Large Automatic Turning Rolls ISO Tank Rotator 20ft 40ft Swap ISO Tank Container Rotation Machine 0

Large Automatic Turning Rolls ISO Tank Rotator 20ft 40ft Swap ISO Tank Container Rotation Machine 1

Large Automatic Turning Rolls ISO Tank Rotator 20ft 40ft Swap ISO Tank Container Rotation Machine 2

Large Automatic Turning Rolls ISO Tank Rotator 20ft 40ft Swap ISO Tank Container Rotation Machine 3



Max loading: 5Ton

Job size: Standard container size 20’, 40’ .

Ring rotate speed: controlled by “Schneider” inverter.

Rotating method: driven by chain & sprocket wheel.

Rotate motor power: 2*0.75W

Travel motor power: 2*0.55kw

Idler travel stroke: 5500-13000mm

Idler travel speed: 3000mm/min



Supply range (For each set/pair)

-01 power unit with motors & gearbox, with rotating ring, fix type

-01 Idler unit with rotating ring, travel type

-01 control cabinet with inverter: Schneider.

-01 Pendant box with 15mtrs cables (as spare)

-03 pushbuttons

-01 speed control switch

-01 digital speed displayer

-Relative documents inc. mechanical drawings, electrical diagram, operation manual, etc.



Certificate

Large Automatic Turning Rolls ISO Tank Rotator 20ft 40ft Swap ISO Tank Container Rotation Machine 4

Our Service

1.Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory. 2.After-Sales Service * Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. We provide two-year machine warranty. In case it exists machine problem, we will solve the problem through email, skype, phone or video. If the problem still exists, we will send our technician to customer's plan for machine repair. We will respond to customer's question as soon as possible.



FAQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit →mass production
→cargo ready → balance/delivery → further cooperation

Q: What payment methods do you accept?
A: T/T, L/C, Alibaba pay, cash, paypal etc. Or other payment methods negotiated by us.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 99% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We can
provide team viewer/ Whatsapp/ Email/ Phone/ Skype with can till all of your problems finished.

Q: How do your factory do regarding quality control?
A: Quality is priority. Each machine will be tested by 24 items. After all the 24 items passed, then our QC do 48~72 hours
reliability test.

Q:Do you provide customs clearance?
A:Yes, we provide DDP service in many countries.
